Precision-Engineered MCB/MCCB Distribution Boards
Our versatile range includes:

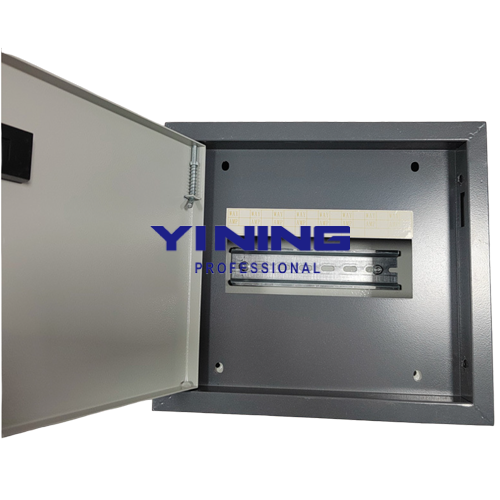

- MCB SPN Board: Single-phase Consumer Unit solution
- MCB DPN & TPN Board: Optimized for two- and three-phase systems
- MCCB TPN Board: Dedicated three-phase MCCB distribution
- MCCB TPN Board with 4-Pole MCCB Outgoing: Enhanced for high-capacity outgoing circuits
Compliant with IEC 61439-3 (MCB) and IEC 61439-2 (MCCB) standards, our boards seamlessly integrate with leading brands like ABB, CHINT, and Schneider. Key electrical specifications ensure peak performance:
- Insulation Voltage: Up to 690V, 50Hz
- Operational Voltage: 240V AC (SPN), 415V AC (TPN)
- Impulse Withstand Voltage: 4kV (MCB), 6kV (MCCB)
- Rated Current: 100A–800A (flexible configurations)
- Outgoing Ways: 4–18 circuits, tailored to your project needs
Safety and durability define our engineering:
- Short-Circuit Withstand: MCB boards handle faults ≥ rated breaking capacity; MCCB TPN offers 50kA, 1-second resilience.
- Protection: IP41 to IP44, shielding against dust and moisture.
- Construction: Robust 1.5mm electro-galvanized steel framework with modular surface-mount design.
- Finishes: Standard RAL7047 Light Grey epoxy powder coating (50-micron thickness).
- Internal Safety: All live parts front-screened; tinned copper busbars (BS1432 standard).
- Cable Entry: Standard bottom entry; top entry available on request.
Every board prioritizes your safety—no compromises. From compact SPN units to high-capacity MCCB systems, YINING ELECTRICAL delivers scalable, future-proof solutions that simplify installation and maximize uptime.
