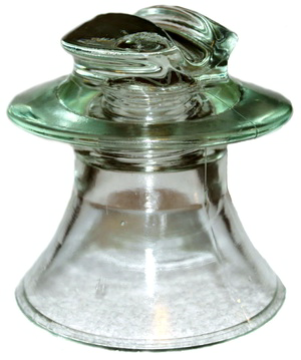

IEC Standard for glass insulator ( IEC 60383 ) | YN-10D |
Nominal Voltage KV | 10KV |
Maximum working voltage KV | 12KV |
Diameter of the insulating part D mm | 130mm |
Spacing , H mm | 160mm |
Creepage Distance mm | 280mm |
Minium Mechanical Residual Strength KN | 12.5 KN |
Puncture Voltage in insulating medium KV | 75 KV |
Dry Power Frequency withstand voltage KV | 40KV |
Wet power frequency withstand voltage KV | 40KV |
Dry Lightning impulse withstand voltage 1.2/50 kv | 75KV |
Radio interference voltage dB/KV | 40KV |
Weight kg | 1.35 kg |
Tests and dimensional tolerances are in according with IEC 608 and IEC 60305 standards.
YINING Electrical Company
Product After-Sales Service Policy
1.Overview
With over two decades of expertise, YINING Electrical Company specializes in high-voltage composite insulators, zinc oxide arresters, and drop-out fuses.Our products are engineered with advanced safety mechanisms (e.g., overvoltage, overcurrent, and overheating protection) to ensure the stability and longevity of power systems globally.
2.Core After-Sales Services
Warranty & Coverage
Duration: 2-5 years (varies by product category).
Scope: Free repair or replacement for defects in materials, workmanship, or performance under standard conditions.
Exclusions: Damage from misuse, natural disasters, or unauthorized modifications.
Technical Support
24/7 Assistance: Accessible through our dedicated support channels.
Remote Diagnostics: Free troubleshooting via video call or email for common technical issues.
On-Site Services: Available for large-scale installations (subject to prior coordination).
Response Efficiency
Critical Issues (e.g., short circuits, overheating): 24-hour response.
General Inquiries: Resolved within 1 business day.
Repair & Replacement
Warranty Period: Faulty products are replaced or repaired at no cost.
Replacement Parts: Dispatched promptly upon confirmation.
3.Quality Assurance
All products meet IEC/GB/T standards and undergo rigorous testing (e.g., AC/DC withstand voltage tests, impulse withstand tests).We provide:
Comprehensive Test Reports with each shipment.
Customized Solutions tailored to specific project requirements.
4.Contact Us
For urgent support or detailed inquiries, reach us through:
Address: No.451 Chouzhou North Road, Yiwu City, Zhejiang Province, China
Email: yining8851@gmail.com
Phone: +86 135 6696 4197 (Irene Chen)
YINING Electrical Company - Delivering Power System Reliability
