ANSI 54-3 Porcelain Strain Stay Insulator | YINING ELECTRICAL COMPANY

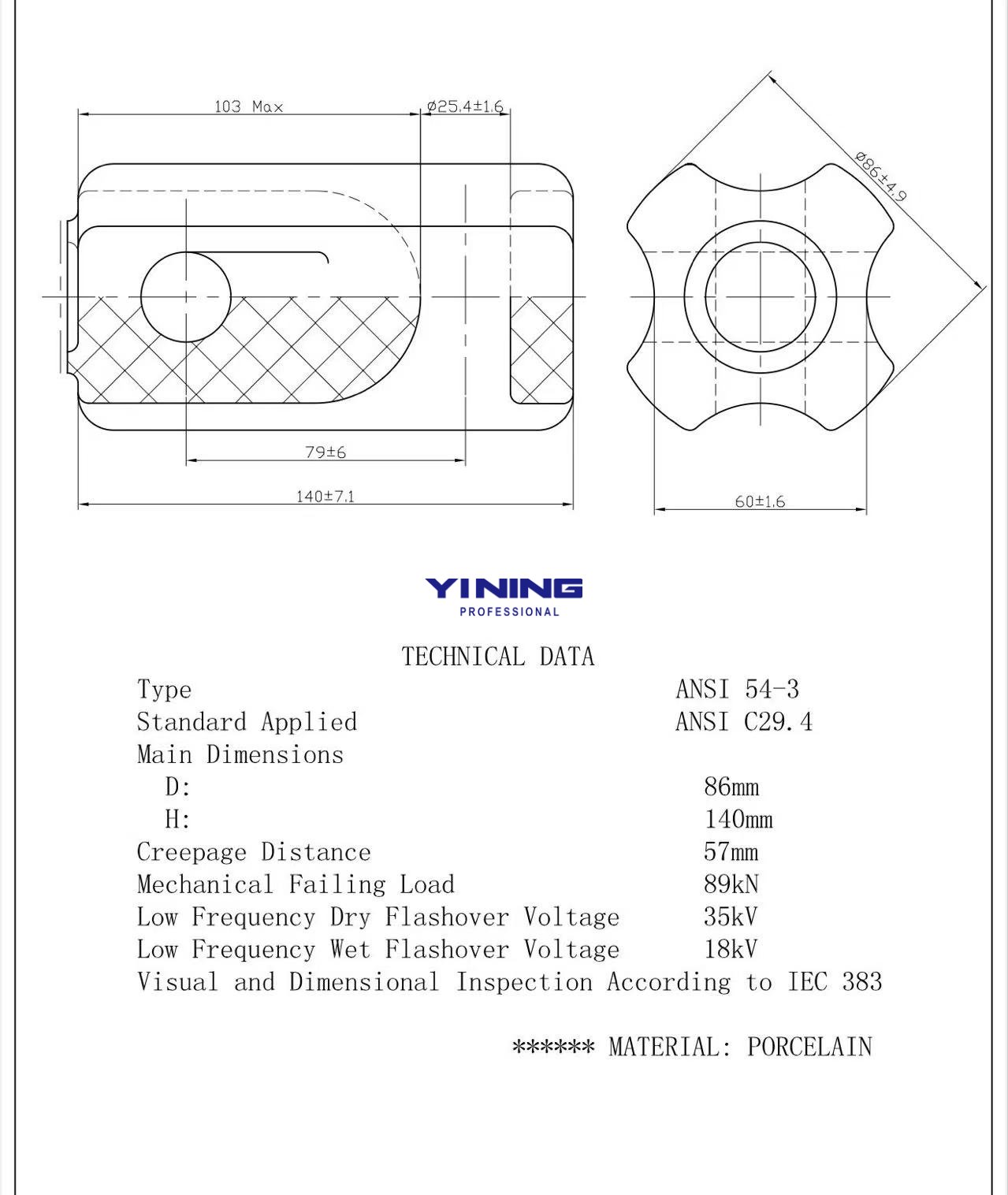

Main Technical Parameters
| Parameter | Specification |
|---|---|
| Diameter (D) | 3 3/8 Inches (86 mm) |
| Height (H) | 5 1/2 Inches (140 mm) |
| Leakage Distance | 2 1/4 Inches (57 mm) |
| Net Weight Each | 2.7 Pounds (1.2 kg) |
| Rated Voltage | 13.8 kV – 69 kV |
| Mechanical Load Capacity | 10 kN – 20 kN (Tensile) |
| Material | High-grade porcelain with glaze coating |
| Standard Compliance | ANSI 54-3, IEC 60383-1, ASTM C743 |
