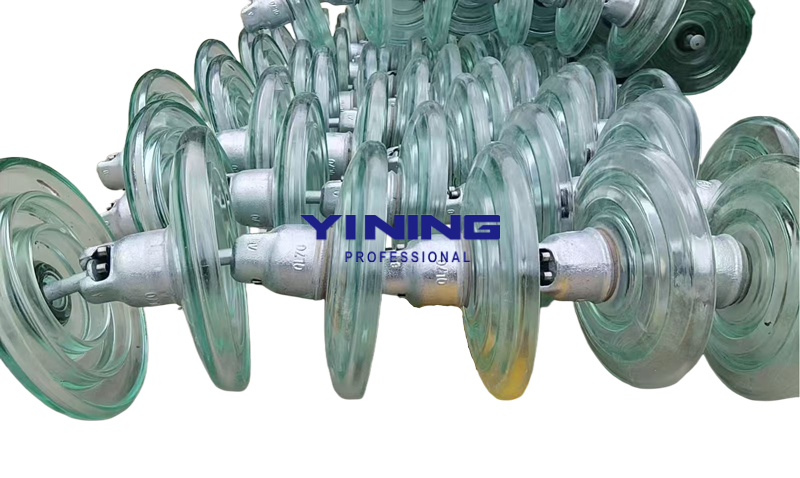

YINING ELECTRICAL COMPANY proudly presents its high-performance 120 kN Glass Insulator, engineered to meet the stringent requirements of modern electrical infrastructure. Designed in accordance with IEC 60305 and IEC 60120 standards, this product is a reliable solution for high-voltage transmission and distribution systems. With an IEC designation of U120B, a spacing of 146 mm, and a coupling size of 16A, it ensures optimal mechanical and electrical performance in demanding environments.
IEC Standard for glass insulator ( IEC 60383 ) | U70BP | U70BLP | U100BLP | U120BP |
Nominal Voltage KV | 40KV | 70KV | 100KV | 120KV |
Maximum working voltage KV | 32KV | 56KV | 96KV | 96KV |
Diameter of the insulating part D mm | 255mm | 280mm | 280mm | 280mm |
Spacing , H mm | 146mm | 146mm | 146mm | 146/170mm |
Creepage Distance mm | 400mm | 442/450mm | 442/450mm | 442/450mm |
Ball and socket coupling , d mm | 11mm | 16mm | 16mm | 16mm |
Puncture Voltage in insulating medium KV | 100 KV | 130KV | 130KV | 130KV |
Dry Power Frequency withstand voltage KV | 70KV | 80KV | 80KV | 80KV |
Wet power frequency withstand voltage KV | 40KV | 45KV | 45KV | 45KV |
Dry Lightning impulse withstand voltage 1.2/50 kv | 100/100KV | 125/125KV | 125/125KV | 125/125KV |
Radio interference voltage dB/KV | 86/25 KV | 86/25 KV | 86/25 KV | 86/25 KV |
Weight kg | 3.0kg | 5.3kg | 5.4 kg | 6.20kg |
Tests and dimensional tolerances are in according with IEC 608 and IEC 60305 standards.
